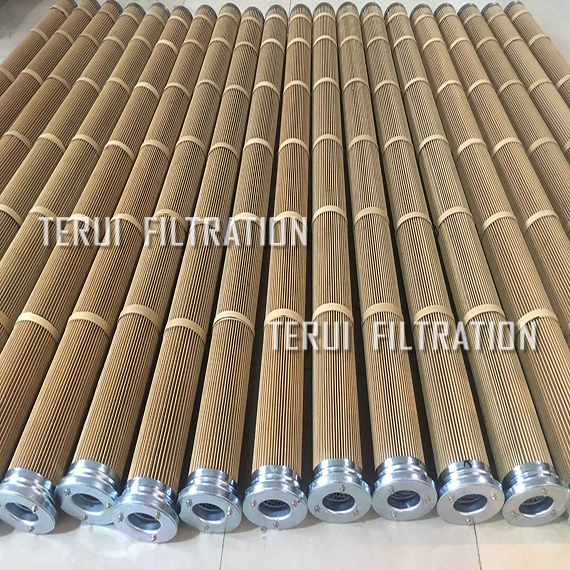

high temperature resistant filter cartridge
PPS high temperature filter material, galvanized metal/stainless steel top and bottom covers,
The unique high temperature resistant structure , the maximum operating temperature of 190℃.
Optional after-treatment: PTFE membrane coated on the surface.
Availability: In Stock
Category: Air filter cartridge
contact for price
The unique high temperature resistant structure , the maximum operating temperature of 190℃.
Optional after-treatment: PTFE membrane coated on the surface.
Availability: In Stock
Category: Air filter cartridge
PPS high temperature filter cartridge
PPS high temperature filter material, galvanized metal/stainless steel top and bottom covers,
The unique high temperature resistant structure , the maximum operating temperature of 190℃.
Optional after-treatment: PTFE membrane coated on the surface.
NOMEX high temperature filter cartridge
NOMEX high temperature filter material, galvanized metal/stainless steel top and bottom covers,
The unique high temperature resistant structure , the maximum operating temperature of 232℃.
Optional after-treatment: PTFE membrane coated on the surface.
Specification:
HTR | Cover Material | Tube sheet | Top cover | Bottom cover | Filtration area/(m²) | Filtration area/(m²) |
TR/LH 127 | Galvanized metal | Φ127 | Φ146 | Φ114 | 1.1(m²) | 2.3(m²) |
TR/LH 133 | Galvanized metal | Φ133 | Φ152 | Φ121 | 1.5(m²) | 3.0(m²) |
TR/LH 159 | Galvanized metal | Φ159 | Φ178 | Φ144 | 2.1(m²) | 4.1(m²) |
TR/LH 162 | Galvanized metal | Φ162 | Φ178 | Φ146 | 2.3(m²) | 4.6(m²) |
