Gas Turbine Cartridges

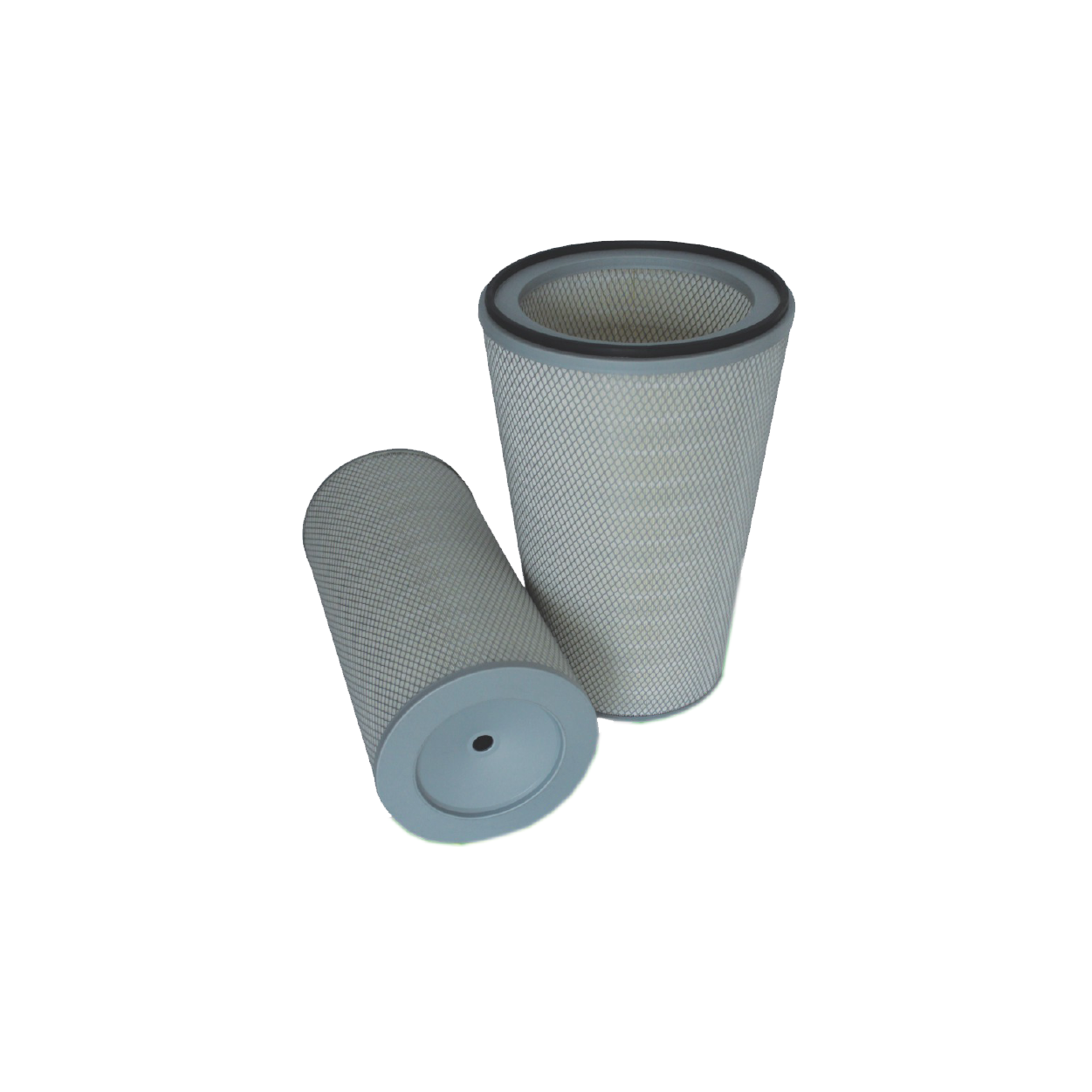

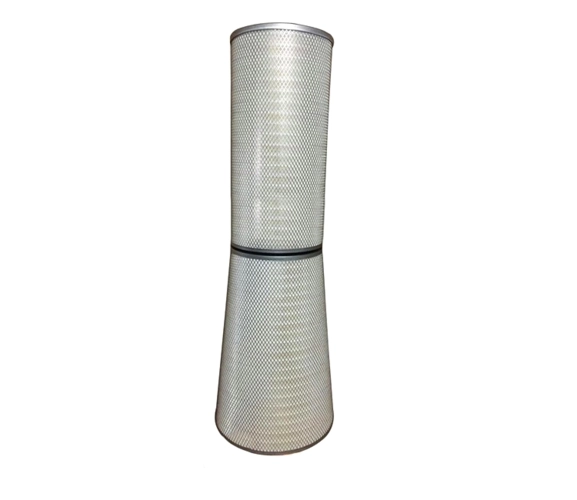

TR/Z Cylindrical cellulose filter cartridge , TR/V conical cellulose filter cartridge, be exclusively used in gas turbine air intake filtration, customization Accepted.
Ask for free sample or trial order, please click here.
Availability: In Stock
Category: Dust collect filter cartridge
contact for price
Ask for free sample or trial order, please click here.
Availability: In Stock
Category: Dust collect filter cartridge
Properties and features
1. Use imported HV Nanoweb filter paper from America, wide pleat design, increased ventilation quantity.
2. Ultra-efficient filtration, the filtration efficiency of 0.5 micron : 99.9%.
3. Widely used in: GE, SOLAR, SIMENS, ALSTOM, MITSUBISHI and other companies gas turbine air intake filtration.
Specification
Cartridge Model | Top end | Top end | Bottom end | Bolt hole | Height | Filtration area |
TR/Z 3266 | Φ324 | Φ213 | Φ324 | Φ14 | 660 | 21 |
TR/V 3266 | Φ408 | Φ293 | Φ324 | / | 660 | 21 |
TR/Z 3566 | Φ352 | Φ241 | Φ352 | Φ16 | 660 | 23 |
TR/V 3566 | Φ460 | Φ345 | Φ352 | / | 660 | 23 |
