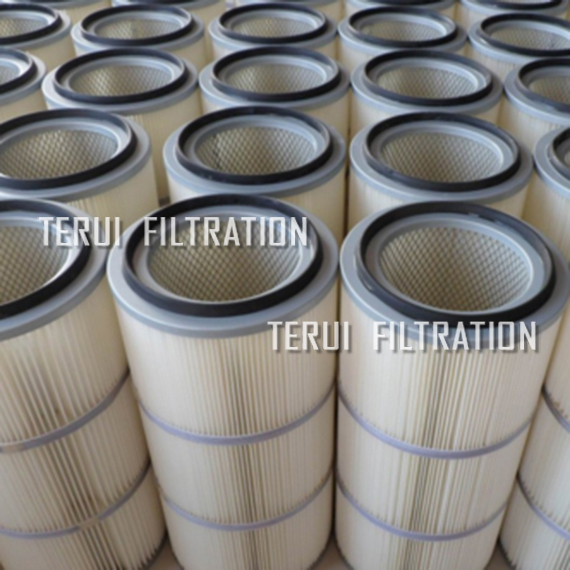

polyester filter cartridge
Use imported polyester fiber material. The fiber has good wearability and it can improve the filtration velocity compared to the traditional filter material.
Speciality of hot-rolled filter material: Good stiffness, be washable, extended service life
Availability: In Stock
Category: Air filter cartridge
contact for price
Speciality of hot-rolled filter material: Good stiffness, be washable, extended service life
Availability: In Stock
Category: Air filter cartridge
Properties and Features
1 .Suitable for filtering welding smoke dust, mechanical processing, pharmaceutical, metallurgy, chemical and other industries produce dust
2. Imports of polyester staple fiber and polytetrafluoroethylene film, providing 99.9% filtration efficiency
3. Wide fold spacing smooth, provide excellent PTFE hydrophobic particles release
4. Fine chemical erosion
5.Electric galvanized steel plate/stainless steel plate and cover, no corrosion perforation, galvanized metal mesh core allows constant wind and air
6. The use of temperature are less than 135℃
Specification:
Types | External diameter | Inner diameter | Length | Surface filtration |
Type 1 | φ324mm | φ213mm | 660mm | 9.4m² |
Type 2 | φ352mm | φ241mm | 660mm | 9.4m² |
Type 3 | φ324mm | φ213mm | 750mm | 10.7m² |
Type 4 | φ324mm | φ213mm | 880mm | 12.5m² |
Type 5 | φ324mm | φ213mm | 1000mm | 13.4m² |
