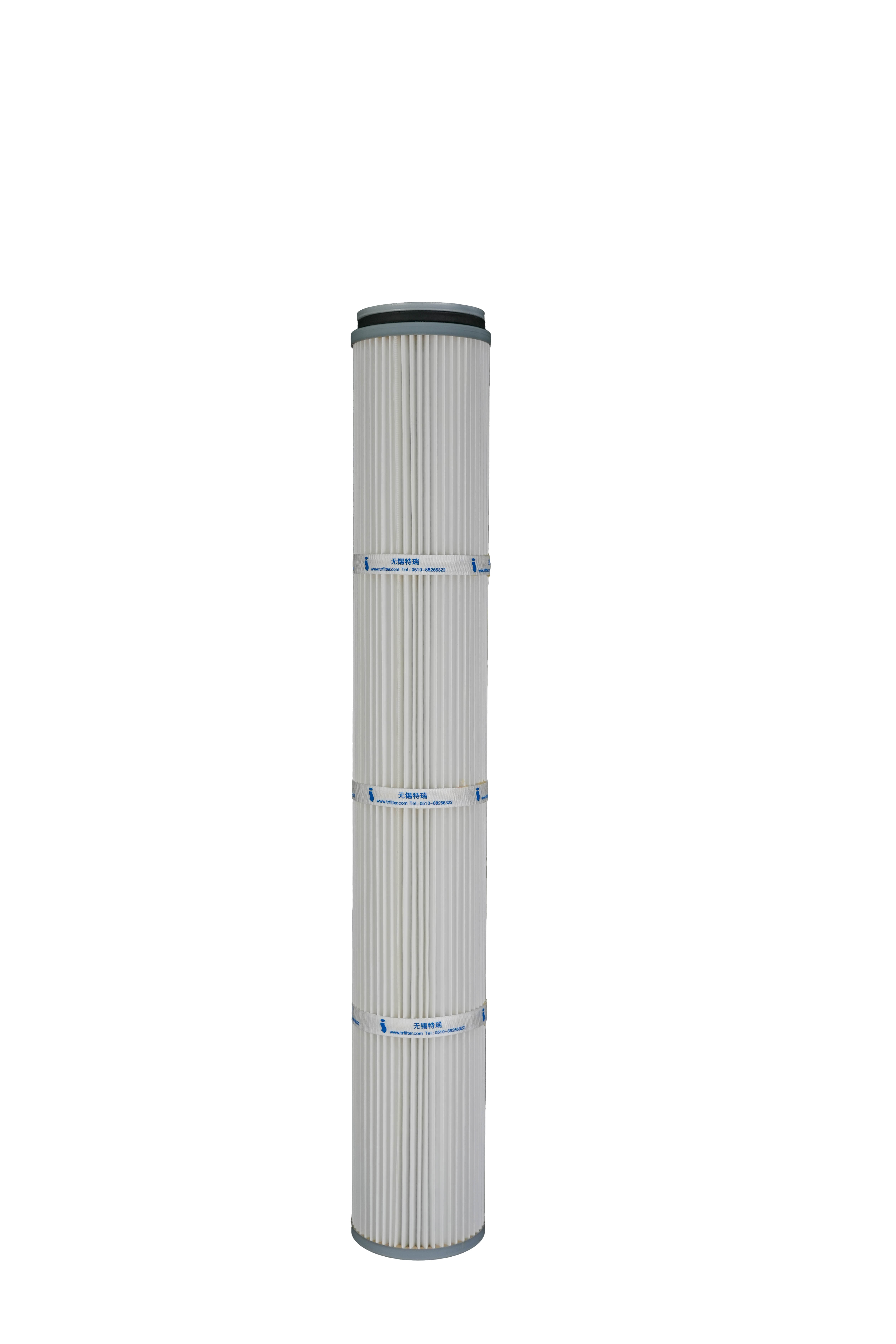

top loaded pulse pleated filter cartridge
100% continuous long fiber spun-bonded polyester filter material
No metal parts touch with the dusty gas, green and environmental protection.
The continuous operating temperature of 107℃.
The applicable tube sheet thickness of 5mm
Availability: In Stock
Category: Air filter cartridge
contact for price
No metal parts touch with the dusty gas, green and environmental protection.
The continuous operating temperature of 107℃.
The applicable tube sheet thickness of 5mm
Availability: In Stock
Category: Air filter cartridge
The structure of polyurethane molded top and bottom covers,
Adopt 100% continuous long fiber spun-bonded polyester filter material,
Continuous supporting inner mesh without corrosion, rubber or food-grade silicone seal ring,
No metal parts touch with the dusty gas, green and environmental protection.
The continuous operating temperature of 107℃.
The applicable tube sheet thickness of 5mm.
Optional after-treatment: PTFE membrane covering, anti-static coating, oil-water proof etc.
UTR | Cover Material | Tube sheet | Top cover | Bottom cover | Filtration | Filtration |
TR/LU 133 | Polyurethane | Φ133 | Φ142 | Φ120 | 2.0(m²) | 4.0(m²) |
TR/LU 153 | Polyurethane | Φ153 | Φ160 | Φ140 | 2.1(m²) | 4.3(m²) |
TR/LU 159 | Polyurethane | Φ159 | Φ169 | Φ145 | 2.3(m²) | 4.6(m²) |
TR/LU 162 | Polyurethane | Φ162 | Φ169 | Φ150 | 2.3(m²) | 4.6(m²) |
The length of filter cartridge can be customized according to the customers' working conditions. Please consult TR application technicians about details.
