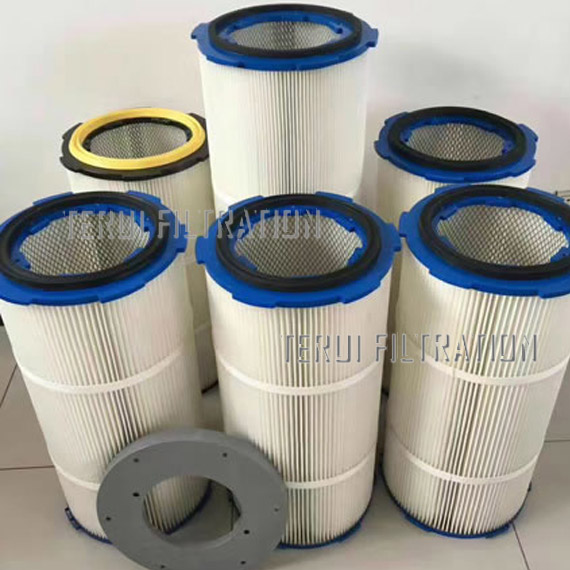

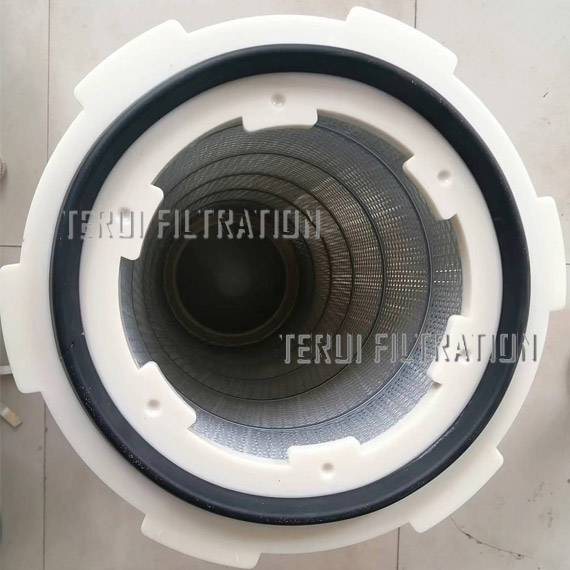

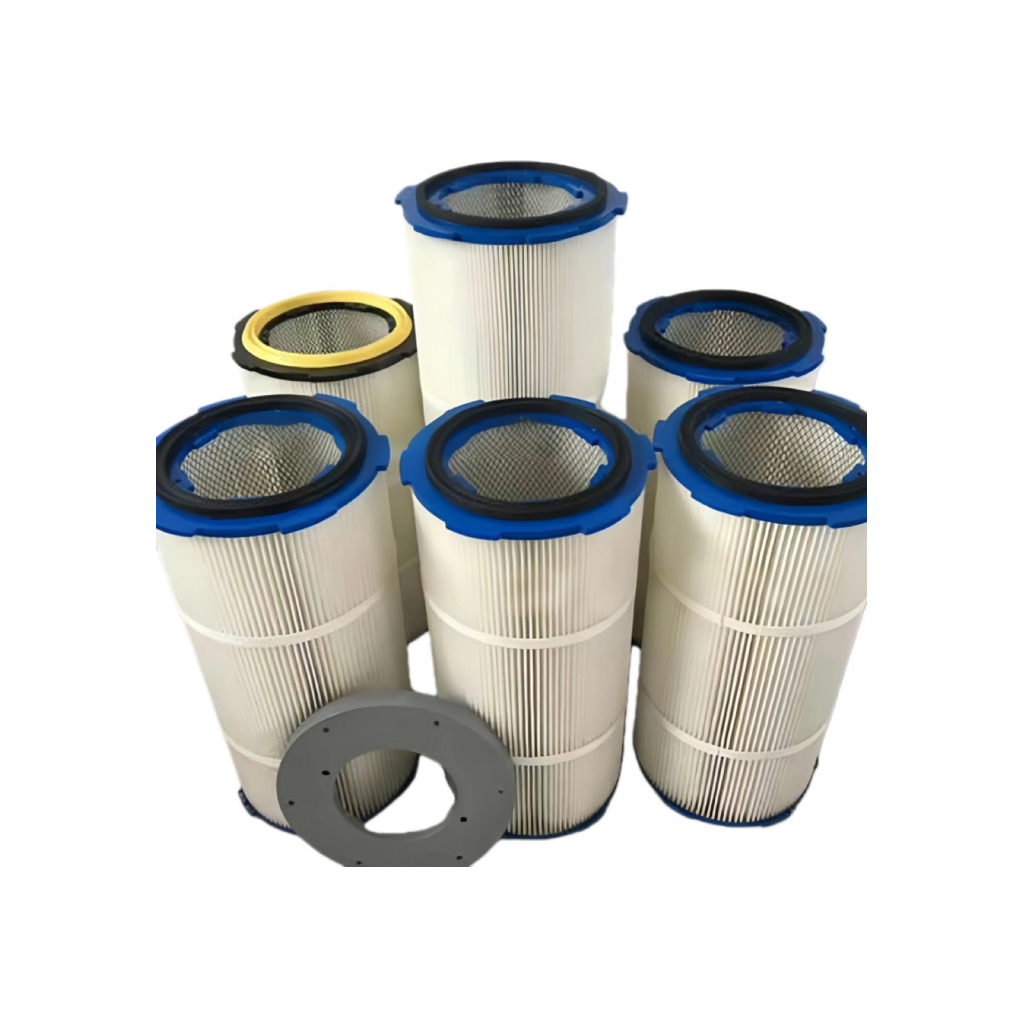

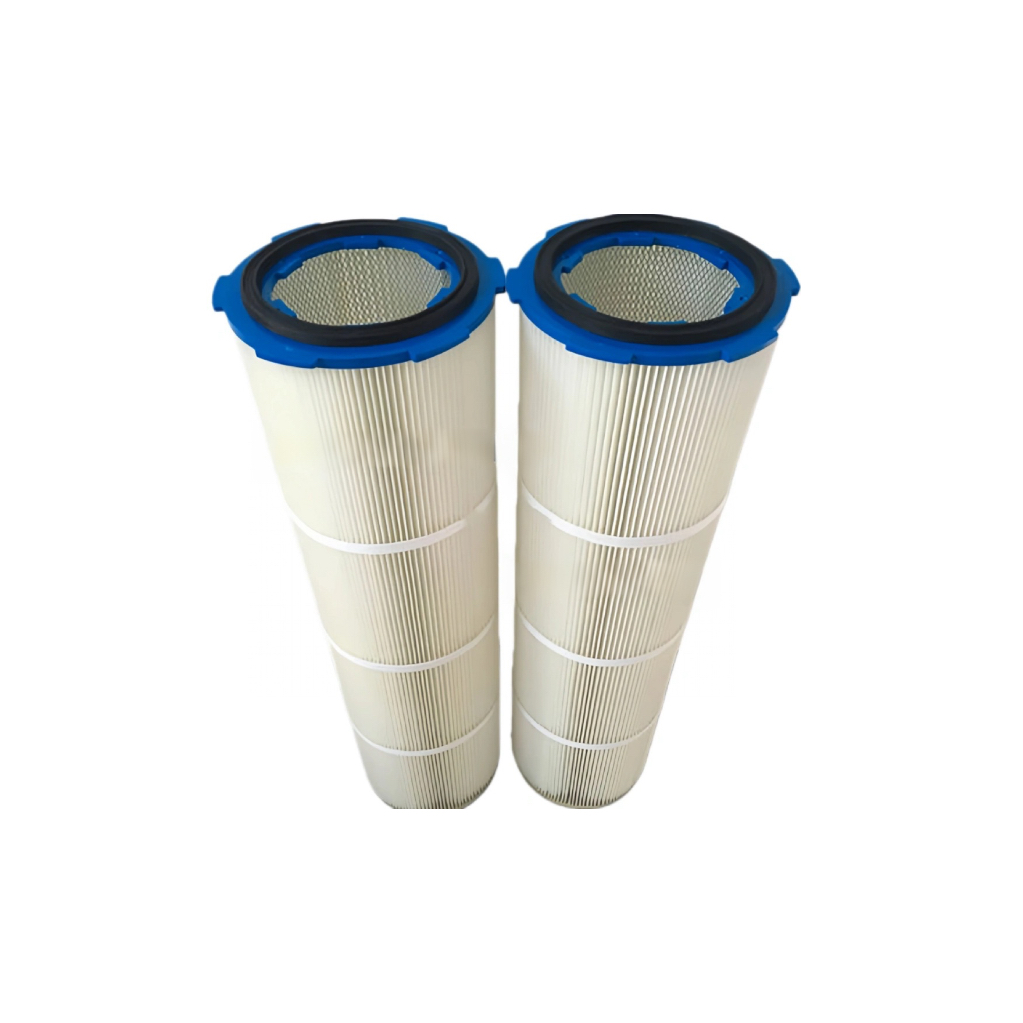

Six Lugs installation polyester filter cartridge
1, Specially designed for powder spraying, suitable for all types of powder recovery, excellent performance.
2. Unique notch and fold design ensures 99% effective filtering area and operation efficiency.
3, Strong break resistance, the use of foreign advanced technology to prepare special filter glue bonding.
4, Better fold spacing, so that the entire filter area on the filter uniform, reduce the pressure difference of the filter element, spray room air stable, powder room cleaning more convenient.
5, Folding top arc transition, improve the effective filter area, filter efficiency is good, prolong the service life.
contact for price
2. Unique notch and fold design ensures 99% effective filtering area and operation efficiency.
3, Strong break resistance, the use of foreign advanced technology to prepare special filter glue bonding.
4, Better fold spacing, so that the entire filter area on the filter uniform, reduce the pressure difference of the filter element, spray room air stable, powder room cleaning more convenient.
5, Folding top arc transition, improve the effective filter area, filter efficiency is good, prolong the service life.
Product Describtion :
1, Specially designed for powder spraying, suitable for all types of powder recovery, excellent performance.
2. Unique notch and fold design ensures 99% effective filtering area and operation efficiency.
3, Strong break resistance, the use of foreign advanced technology to prepare special filter glue bonding.
4, Better fold spacing, so that the entire filter area on the filter uniform, reduce the pressure difference of the filter element, spray room air stable, powder room cleaning more convenient.
5, Folding top arc transition, improve the effective filter area, filter efficiency is good, prolong the service life.
Specification :
Cartridge Model | Top end | Top end Cap ID(m²) | Bottom end Cap OD(m²) | Bolt hole(m²) | Height | Filtration area (m²) |
TR/D 3266 | Φ325 | Φ213 | Φ325 | Φ14 | 660 | 9.4 |
TR/D 3275 | Φ325 | Φ213 | Φ325 | Φ14 | 750 | 10.6 |
TR/D 32100 | Φ325 | Φ213 | Φ325 | Φ14 | 1000 | 14.2 |
TR/D 3566 | Φ350 | Φ241 | Φ350 | Φ16 | 660 | 10 |
TR/D 3575 | Φ350 | Φ241 | Φ350 | Φ16 | 750 | 11.3 |
Application :
1: Energy, cement, chemical, machinery, glass and other production lines to recycle raw materials, clean dust
2: Pharmaceutical, cigarette, coating, production line recycling raw materials, purification dust removal
3: Wood industry, polishing, shot blasting, grinding, powder preparation industry of dust recovery of dust purification filter element.
