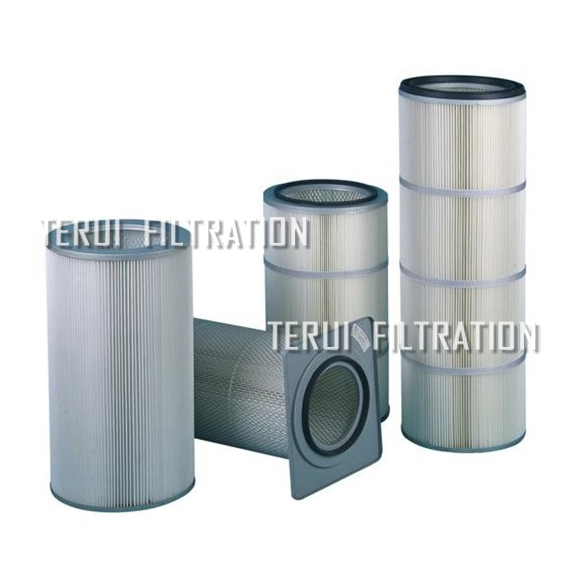

Polyester filter cartridge with PTFE membrane

Use imported polyester fiber material. The fiber has good wearability and it can improve the filtration velocity compared to the traditional filter material.

Availability: In Stock
Category: Air filter cartridge
contact for price

Product description:

Use imported polyester fiber material. The fiber has good wearability and it can improve the filtration velocity compared to the traditional filter material.

Speciality of hot-rolled filter material: Good stiffness, be washable, extended service life.

The perfect combination of anti-fingerprint top and bottom covers, rustless macroporous rhombus supporting mesh and resilient rubber seal ring is convenient for seal installation and pulse-jet cleaning.

Suggest working temperature below 135 degrees.

Applications: gas and dust filtration in powder spraying, sand blasting, paint, wood, cement and other industries.



Specification:

Cartridge Model

Top end
  Cap OD(m²)

Top end
  Cap ID(m²)

Bottom end
  Cap OD(m²)

Bolt hole(m²)

Height
  (m²)

Filtration area
  (m²)

TR/P 3266

Φ324

Φ213

Φ324

Φ14

660

9.4

TR/P 3275

Φ324

Φ213

Φ324

Φ14

750

10.6

TR/P 32100

Φ324

Φ213

Φ324

Φ14

1000

14.2








TR/P 3566

Φ352

Φ241

Φ352

Φ16

660

10

TR/P 3575

Φ352

Φ241

Φ352

Φ16

750

11.3

TR/P 35100

Φ352

Φ241

Φ352

Φ16

1000

15.1
