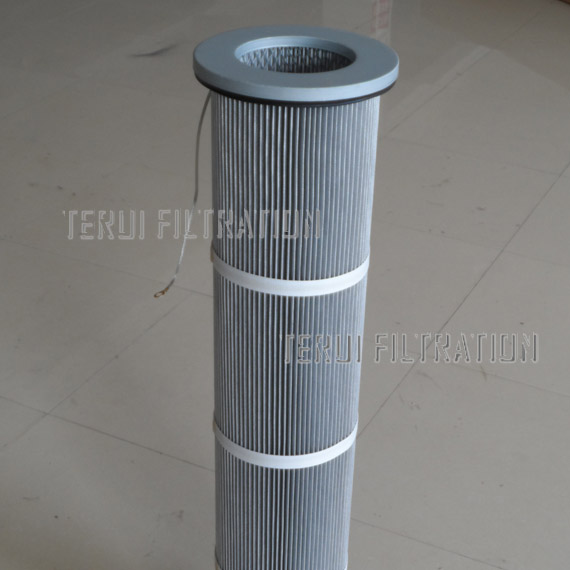

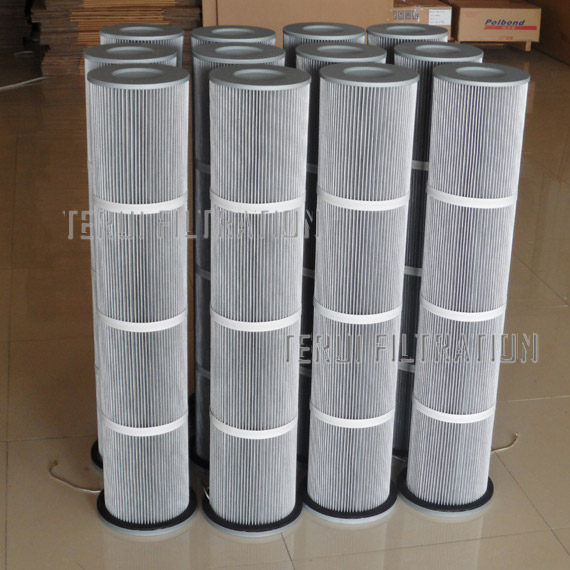

Pleated antistatic filter cartridge

Anti-static means anti-static aluminum processing, antistatic polyester filter cartridge reflects the antistatic property and improves the filter fineness by adding conductive fiber to the filter material and surface of PTFE coating treatment, it can avoid electrostatic fire and be suitable for dust removal in explosion-proof condition, the finest filtering precision 0.3um, suggest working temperature below 135 degrees.
contact for price

Product Describtion :

Anti-static means anti-static aluminum processing, antistatic polyester filter cartridge reflects the antistatic property and improves the filter fineness by adding conductive fiber to the filter material and surface of PTFE coating treatment, it can avoid electrostatic fire and be suitable for dust removal in explosion-proof condition, the finest filtering precision 0.3um, suggest working temperature below 135 degrees.


Antistatic Polyester media filter cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.



Specification :

Cartridge   Model

Top end
  Cap OD(m²)

Top end Cap   ID(m²)

Bottom end   Cap OD(m²)

Bolt   hole(m²)

Height
    (m²)

Filtration   area (m²)

TR/D 3266

Φ324

Φ213

Φ324

Φ14

660

9.4

TR/D 3275

Φ324

Φ213

Φ324

Φ14

750

10.6

TR/D 32100

Φ324

Φ213

Φ324

Φ14

1000

14.2

TR/D 3566

Φ352

Φ241

Φ352

Φ16

660

10

TR/D 3575

Φ352

Φ241

Φ352

Φ16

750

11.3
