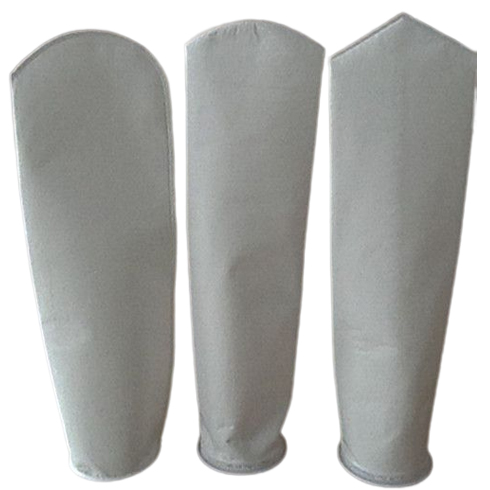

Liquid Filter Bag
Acid proof, alkali proof, corrosion resistant
Temperature: PP 90℃ PE130℃
Sanitary application
High cost performance
Filtration precision: 0.5 micron -300 micron
Supply standard or non-standard customized filter bag
Availability: In Stock
Category: Filter bag and filter housing
contact for price
Temperature: PP 90℃ PE130℃
Sanitary application
High cost performance
Filtration precision: 0.5 micron -300 micron
Supply standard or non-standard customized filter bag
Availability: In Stock
Category: Filter bag and filter housing
Product details:
PO Polypropylene
Acid proof, alkali proof, corrosion resistant
Temperature: 90-100℃
Sanitary application
High cost performance
Filtration precision: 1-300 micron
Supply standard or non-standard customized filter bag.
| Standard Model | bag diamater | bag length | Max flow | filtration area | Collar ring |
| 01# | 7'' ( Φ180mm） | 17''（ Φ430mm) | 20m³/h | 0.25㎡ | plastic ring/ Gal-vanized ring |
| 02# | 7'' ( Φ180mm） | 32''（ Φ810mm) | 40m³/h | 0.5㎡ | plastic ring/ Gal-vanized ring |
| 03# | 4'' ( Φ105mm） | 9''（ Φ230mm) | 6m³/h | 0.09㎡ | plastic ring/ Gal-vanized ring |
| 04# | 4'' ( Φ105mm） | 15''（ Φ380mm) | 12m³/h | 0.16㎡ | plastic ring/ Gal-vanized ring |
| 05# | 6'' ( Φ155mm） | 22''（ Φ560mm) | 18m³/h | 0.25㎡ | plastic ring/ Gal-vanized ring |
Note : the size would be customized.
