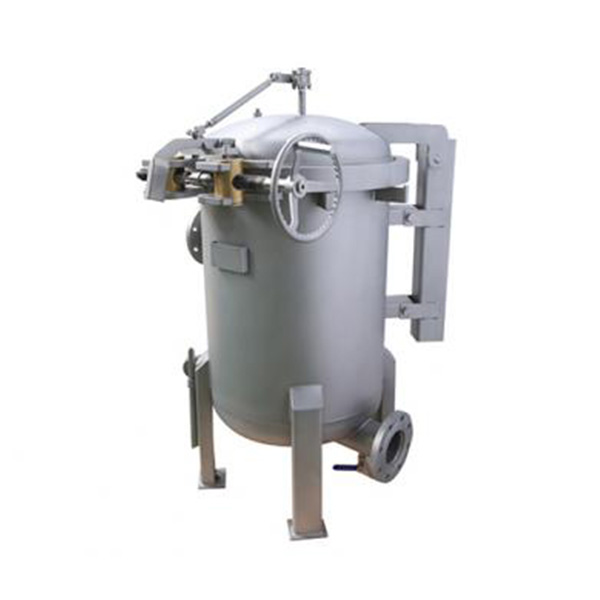

INDUSTRIAL BAG FILTER HOUSING
Bag housing is available in both single and double lengths. The top opening style is equipped with a Vee clamp as standard for pressures up to 8.5 bar g.
These housings are widely used where low cost is of prime importance and this makes them the ideal choice to replace conventional cast stainless steel strainers. The side inlet and bottom outlet configuration is perfectly suited to duties where product changes demand a simple to clean, easy access housing.
Availability: In Stock
Category: Filter bag and filter housing
contact for price
These housings are widely used where low cost is of prime importance and this makes them the ideal choice to replace conventional cast stainless steel strainers. The side inlet and bottom outlet configuration is perfectly suited to duties where product changes demand a simple to clean, easy access housing.
Availability: In Stock
Category: Filter bag and filter housing
Product Features
Designed for flow rates up to 6.5 m3/hr
Suitable for liquids and gases
Flat bolted closure for high pressure rated at full vacuum and 10 bar g up to 150°C
Internally and externally electropolished as standard
Robust bag support basket assembly fabricated from perforated sheet rather than wire mesh for extra strength
Wide range of options available for connection sizes and types and materials of construction
Available in 316L stainless steel
PED and Compliant
Features and Benefits
1.Integral vent to aid efficient filter changeout
2.Each housing is etched with a unique serial number for full traceability
3.Full housing customisation service available
4.Internally and externally electropolished as standard
Specification
Maximum Operating Conditions Pressure Range: Liquid: Vee clamp: 8.5 bar Screw clamps: FV / 10 bar g Gases: Screw clamps: FV / 10 bar g Temperature Range: Vee clamp: -10ºC / 110ºC Screw clamps: -10ºC / 150ºC
Materials of Construction Body: 316L St.Steel Closure: Vee clamp – 304 St. Steel Screw clamps – Zinc plated carbon steel (Optional stainless steel)
Finish Vessel: Electropolished Basket: Pickled Connections Inlet/Outlet: 1”, 11 /2” or 2” BSPM Vent: ¼” BSP
