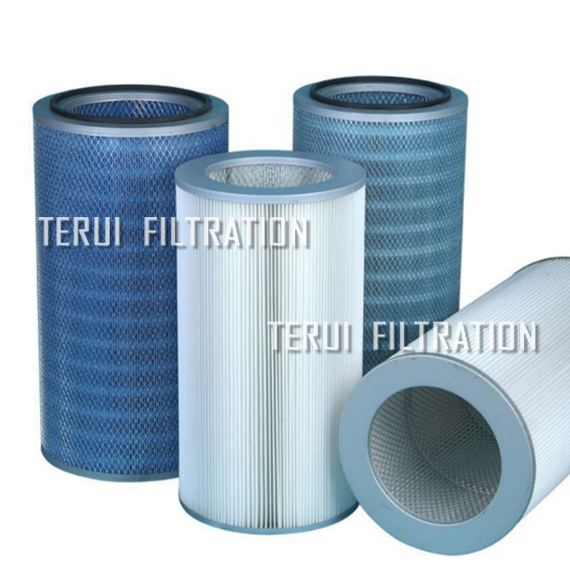

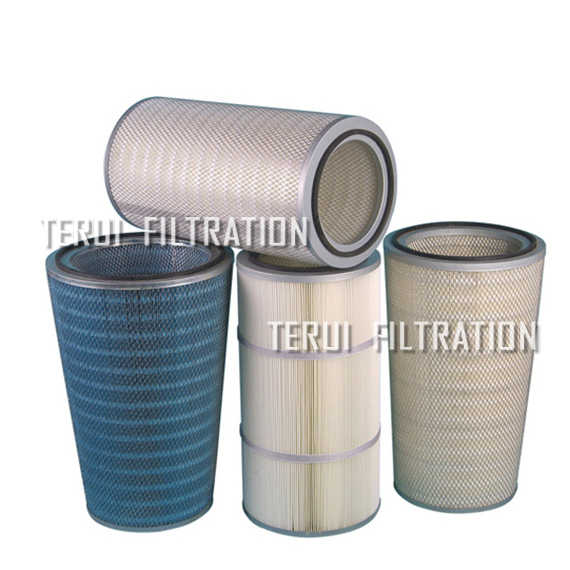

Gas turbine air filter cartridge
Use imported HV Nanoweb filter paper from America, wide pleat design, increased ventilation quantity.
Ultra-efficient filtration, the filtration efficiency of 0.5 micron : 99.9%.
Widely used in: GE, SOLAR, SIMENS, ALSTOM, MITSUBISHI and other companies’ gas turbine air intake filtration
Availability: In Stock
Category: Air filter cartridge
contact for price
Ultra-efficient filtration, the filtration efficiency of 0.5 micron : 99.9%.
Widely used in: GE, SOLAR, SIMENS, ALSTOM, MITSUBISHI and other companies’ gas turbine air intake filtration
Availability: In Stock
Category: Air filter cartridge
Properties and Features
1.Imported superfine fiberglass filter material ,double-layer design,stiffness ,good air permeability,dust nano filtration,efficiency more than F9, to ensure the normal operation of gas turbine.
2.The rubber sealing ring of stability ,good rebound to ensure the sealing effect.
3.Metal end cap and frame electric galvanized treatment, acid and alkali corrosion,not rust
4.Adopt the wide range design, the max of the filter cylinder air permeability
5.The bottle of rubber seal installed with the gasket, so that the performance more reliable.
Specification:
Types | Shape | External diameter | Inner diameter | Length | Surface filtration |
Type 1 | Cylinder | φ324mm | φ213mm | 559mm | 18m² |
Type 2 | Cylinder | φ352mm | φ213mm | 660mm | 21m² |
Type 3 | Cylinder | φ324mm | φ213mm | 700mm | 22.3m² |
Type 4 | Cylinder | φ324mm | φ213mm | 735mm | 23.5m² |
Type 5 | Cylinder | φ408mm(φ445mm) | φ293mm(φ330mm) | 875mm | 33.2m² |
Type 5 | Cylinder | φ408mm(φ445mm) | φ293mm(φ330mm) | 559mm | 21.6m² |
Type 5 | Cylinder | φ324mm | φ213mm | 865mm | 25m² |
